2 inch Cast Iron High pressure Gasoline Engine Water Pump for fire fighting >> Water pumps |
NTWP20H2
NO. : 8696
Displacement
215cc
Power
5.0kW / 6.7hp
Motor Type
Gasoline

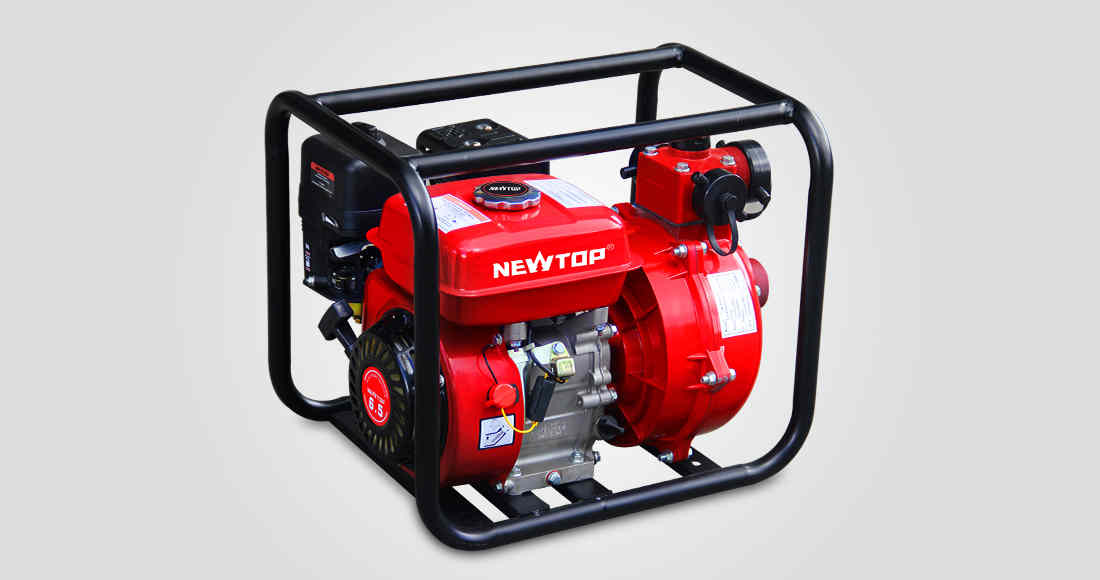

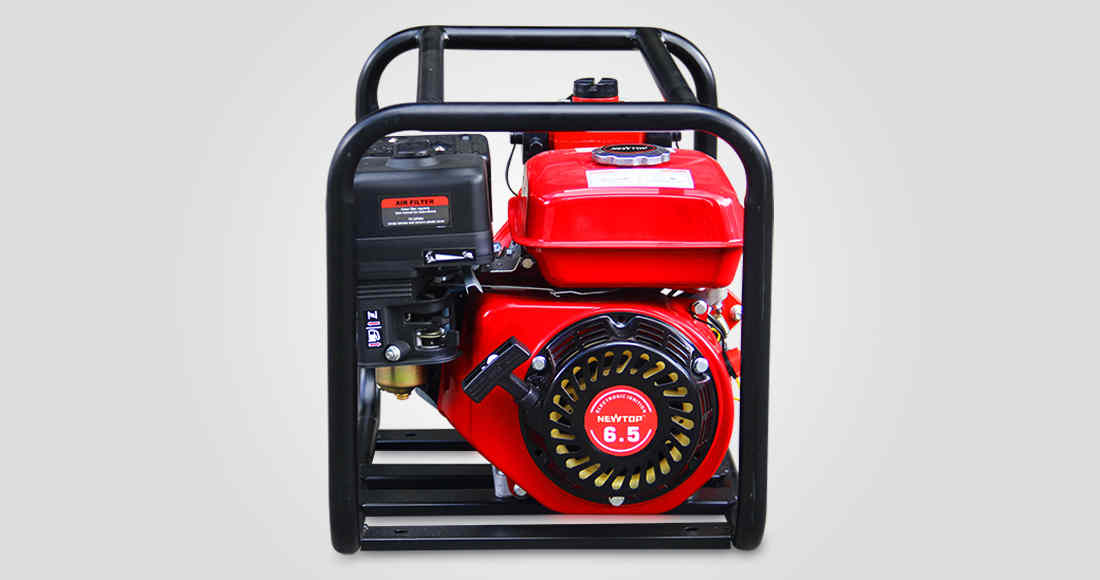

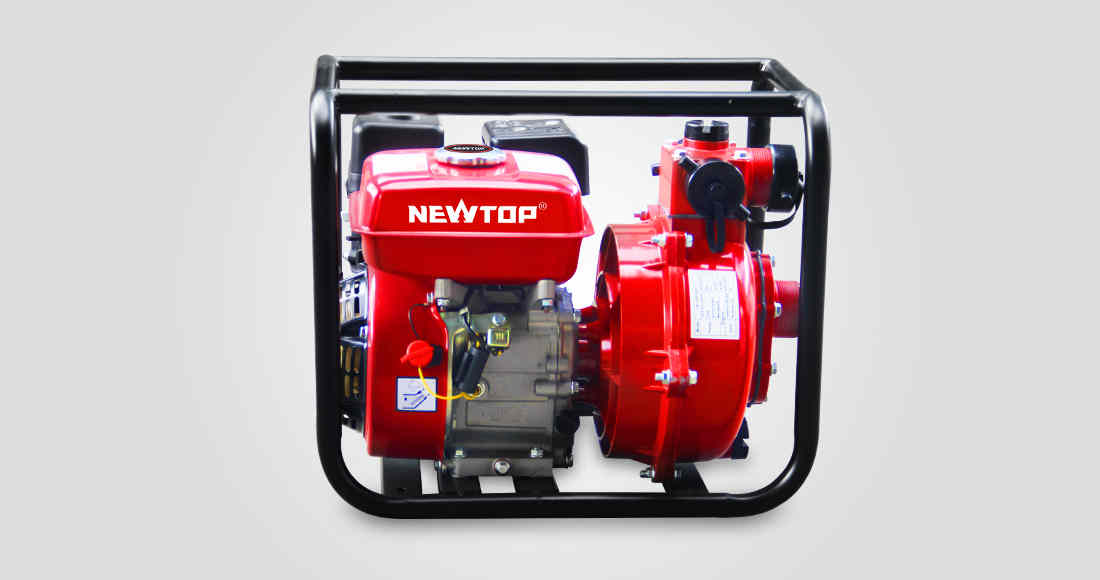

The NEWTOP water pump is suitable for high pressure delivery such as fire fighting, long distance water transfer, Filing large Tanks or Dam over a long distance, Farm watering, impact sprinklers etc. Designed with the quick priming technology and shock absorber device. NEWTOP gasoline high pressure water pump is assembled in a robust high-graded steel frame that guarantees Durability and stable performance.
PRODUCT DETAILS

Request a Quote

   Model NO.  NTWP20H2
   Commodity name   2" Gasoline High Pressure Water Pump
   Engine type   MF170F single cylinder, air-cooling engine(with double inpeller)
   Motor type (2/4stroke/gasoline/diesel)   4 / Gasoline
   Displacement (cc)   215cc
   Power (kW/hp)   5.0kW / 6.7hp
   Engine (rpm)   3600rpm
   Oil engine capacity (L)   0.6L
   Tank capacity (L)   3.6L
   Max height (m)   75m
   Max flow (m³/h)(gal./min.)   15m³/h (66 gal./min.)
   Total suction lift up to (m)   83m
   Max liquid temperature (°C)   40°C
   Pump body (aluminum/plastic/steel/castiron)   Aluminum
   Input connector size (1", 1/4"…)   2"
   Ouput connector size   2",1-1/2",1-1/2"
   Dry weight   29kg (64 lbs.)
   Gross weight   30kg (66 lbs.)



Feel free to contact us with your any question

Name:
E-mail:
CLEAR SEND
HOT TAGS : Gasoline Water Pump / High pressure Gasoline Engine Water Pump / High pressure Water Pump
* The picture for reference only, specifications are subject to the phisycal product.
