6.5HP 4 stroke 3 inch Gasoline sweage water pump agricultural irrigation water pump >> Water pumps |
NTWP30WS-A
Displacement
208cc
208cc
Power
4.6kW / 6.2hp
4.6kW / 6.2hp
Motor Type
Gasoline
Gasoline

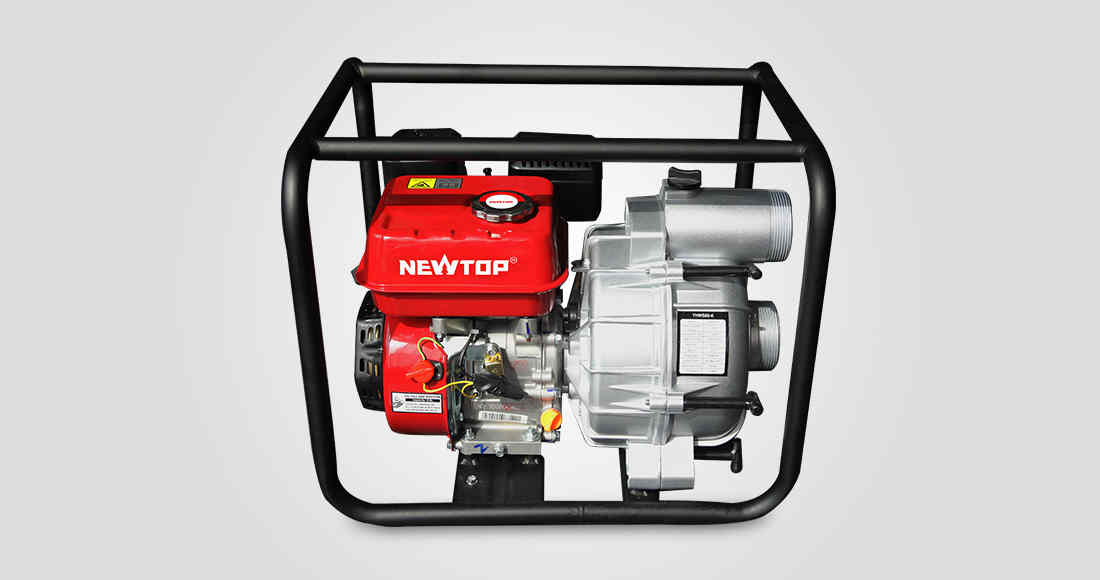

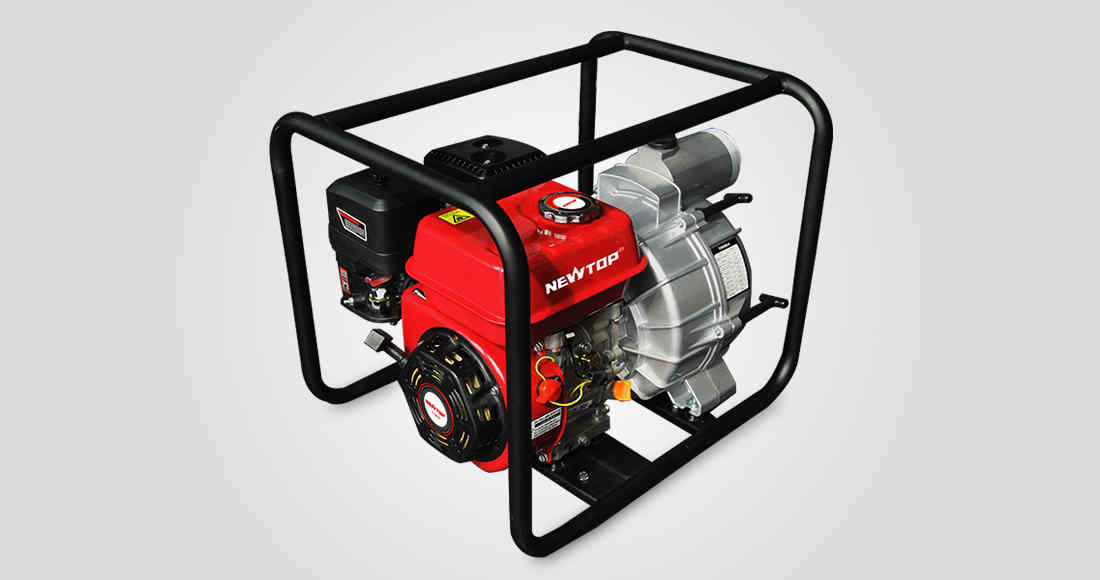

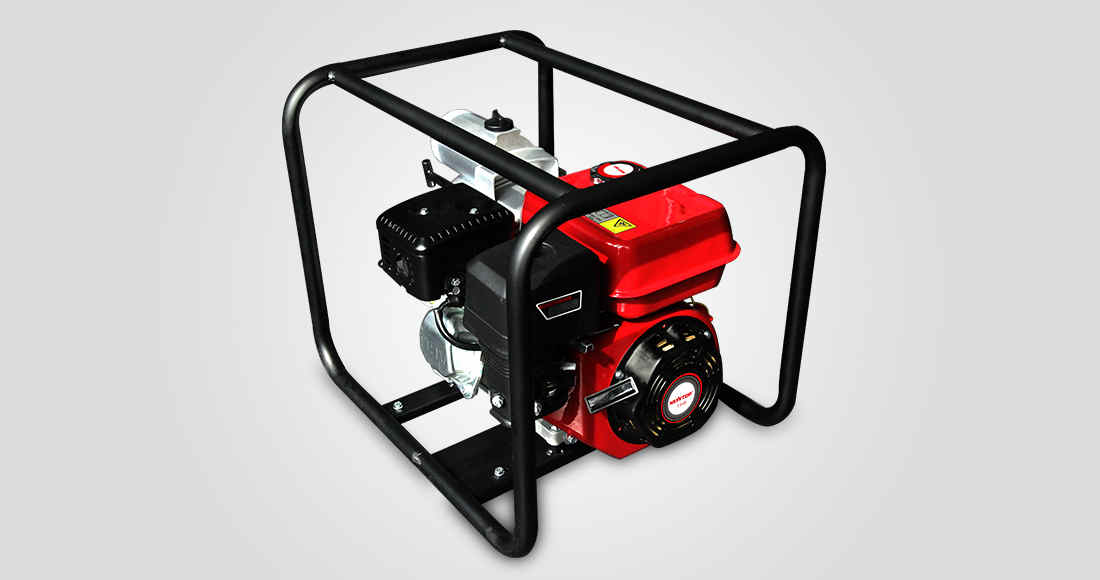

This NEWTOP NTWP30WS-A gasoline sweage water pump engine can quickly transfer water at speeds up to 290 GPM (gallons per minute). The large 3 in. intake/discharge ports can pass soft solids up to 3/4 in. diameter. The gas engine on the pump makes it ideal for use during power outages and at remote jobsites. A durable cast iron volute and impeller combined with high quality silicon carbide seals ensure long service life.
PRODUCT DETAILS
Request a Quote
| Model NO. | NTWP30-A |
| Commodity name | 3" Gasoline Water Pump |
| Engine type | 168FB single cylinder, air-cooling engine |
| Motor type (2/4stroke/gasoline/diesel) | 4 Stroke / Gasoline |
| Displacement (cc) | 208cc |
| Power (kW/hp) | 4.6kW / 6.2hp |
| Engine (rpm) | 3600rpm |
| Oil engine capacity (L) | 0.6L |
| Tank capacity (L) | 3.6L |
| Max height (m) | 30m |
| Max flow (m³/h)(gal./min.) | 54m³/h(238 gal./min.) |
| Total suction lift up to (m) | 36m |
| Max liquid temperature (°C) | 40°C |
| Pump body (aluminum/plastic/steel/castiron) | Aluminum |
| Input connector size (1", 1/4"…) | 3" |
| Ouput connector size | 3" |
| Dry weight | 27kg (59 lbs.) |
| Gross weight | 30kg (66 lbs.) |
Feel free to contact us with your any question
HOT TAGS :
Gasoline sweage water pump / agricultural irrigation water pump
* The picture for reference only, specifications are subject to the phisycal product.
